VR SERIES CNC Variable Rake Angle Shears
VR SERIES CNC Variable Rake Angle Shears
Standard Features
- Motorised Blade gap adjustment with CNC Control Unit Cybelec CYB Touch 8
- CE Norms and security light guards
- CNC Touch Screen by Cybelec User Friendly mode
- Automatically adjusted rake angle by CNC
- Back gauge with ball screw
- Flip up finger guards 1 meter
- 1500mm squaring arm with T slot and scale on it
- 1000mm suport arms 2 pcs T slots on it
- Led Light for cutting area and shadow line

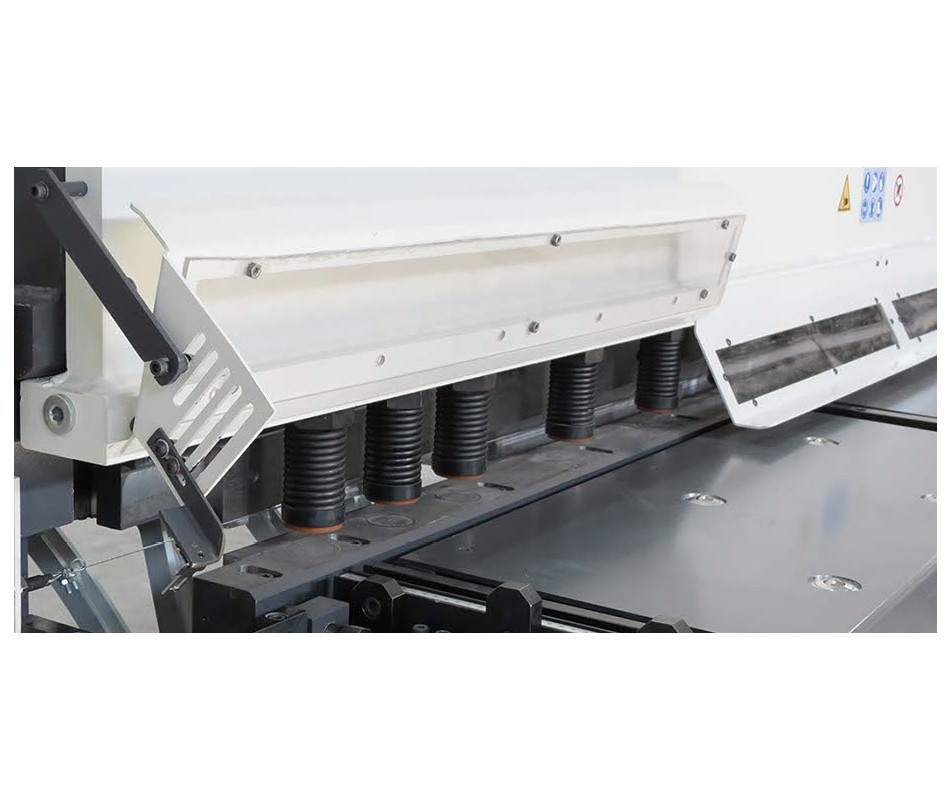

- Automatically pressure adjusted holddowns
- Sheet slider at backside
- 4 sides top and bottom blades
- Hardened and grounded blades
Optional Features
- Finger protection aimed light curtain
- Thin sheet support pneumatic
- Pneumatic sheet support with return to sender
- Anti-twist system
- 1250 mm back gauge
- Hydraulic swing-up back gauge
- Adjustable angle stop 0-180 degree
- Central lubrication manual or motorised
- Laser cutting line
- Speare Blades
- Oil Coolant
- Oil Heater
|
VARIABLE RAKE ANGLE CNC GUILLOTINE SHEARS |
||||||||||||||||||
|
Type |
Cutting Angle |
Cutting Length |
Capacity |
Capacity |
Length |
Width |
Height |
Total Width |
Throat Depth |
Table Height |
Holddown pistons |
Motor |
Back gauge motor |
Back gauge range |
Backgauge Speed |
Stroke/min |
Oil Tank |
Weight |
|
|
|
|
420 N/mm2 |
700 N/mm2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
( ° ) |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
pcs |
kw |
kw |
mm |
mm/sec |
1/min |
lt |
kg |
|
VR 3106 |
0,5°..2,0° |
3100 |
6 |
4 |
4100 |
2360 |
2165 |
2650 |
50 |
790 |
15 |
11 |
0,75 |
1000 |
200 |
18 |
200 |
7500 |
|
VR 3110 |
0,5°..2,0° |
3100 |
10 |
6 |
4030 |
2200 |
2290 |
2700 |
50 |
805 |
15 |
22 |
0,75 |
1000 |
200 |
12 |
300 |
10500 |
|
VR 3113 |
0,5°..2,5° |
3100 |
13 |
8 |
4050 |
2200 |
2290 |
2700 |
50 |
805 |
15 |
30 |
0,75 |
1000 |
200 |
12 |
400 |
12500 |
|
VR 3116 |
0,5°..2,5° |
3100 |
16 |
10 |
4190 |
2375 |
2515 |
2900 |
50 |
880 |
15 |
37 |
0,75 |
1000 |
200 |
10 |
400 |
18000 |
|
VR 3120 |
0,5°..2,5° |
3100 |
20 |
13 |
4125 |
2490 |
2530 |
3065 |
50 |
880 |
19 |
37 |
0,75 |
1000 |
200 |
9 |
500 |
21000 |
|
VR 4106 |
0,5°..2,0° |
4100 |
6 |
4 |
5120 |
2360 |
2165 |
2665 |
50 |
790 |
19 |
11 |
0,75 |
1000 |
200 |
16 |
200 |
9800 |
|
VR 4110 |
0,5°..2,0° |
4100 |
10 |
6 |
4935 |
2225 |
2290 |
2700 |
50 |
805 |
19 |
22 |
0,75 |
1000 |
200 |
12 |
300 |
13000 |
|
VR 4113 |
0,5°..2,5° |
4100 |
13 |
8 |
4950 |
2230 |
2440 |
2720 |
50 |
805 |
19 |
30 |
0,75 |
1000 |
200 |
10 |
400 |
15400 |
|
VR 4116 |
0,5°..2,5° |
4100 |
16 |
10 |
5195 |
2415 |
2595 |
2900 |
50 |
880 |
19 |
37 |
0,75 |
1000 |
200 |
8 |
400 |
22000 |
|
VR 4120 |
0,5°..2,5° |
4100 |
20 |
13 |
5080 |
2490 |
2800 |
3065 |
50 |
880 |
21 |
37 |
0,75 |
1000 |
200 |
6 |
500 |
29000 |
|
VR 6106 |
0,5°..2,0° |
6100 |
6 |
4 |
7120 |
2360 |
2700 |
2665 |
50 |
790 |
32 |
22 |
0,75 |
1000 |
200 |
10 |
300 |
22000 |
|
VR 6110 |
0,5°..2,0° |
6100 |
10 |
6 |
6950 |
2225 |
2750 |
2700 |
50 |
805 |
32 |
30 |
0,75 |
1000 |
200 |
8 |
300 |
25000 |
|
VR 6113 |
0,5°..2,5° |
6100 |
13 |
8 |
7175 |
2450 |
2900 |
2700 |
50 |
965 |
32 |
37 |
0,75 |
1000 |
200 |
6 |
400 |
32500 |
|
VR 6116 |
0,5°..2,5° |
6100 |
16 |
10 |
7080 |
2415 |
2950 |
2900 |
50 |
1000 |
32 |
45 |
0,75 |
1000 |
200 |
6 |
500 |
36000 |
|
VR 6120 |
0,5°..3,0° |
6100 |
20 |
13 |
7125 |
2490 |
3200 |
3065 |
50 |
1050 |
32 |
45 |
0,75 |
1000 |
200 |
5 |
500 |
55000 |
