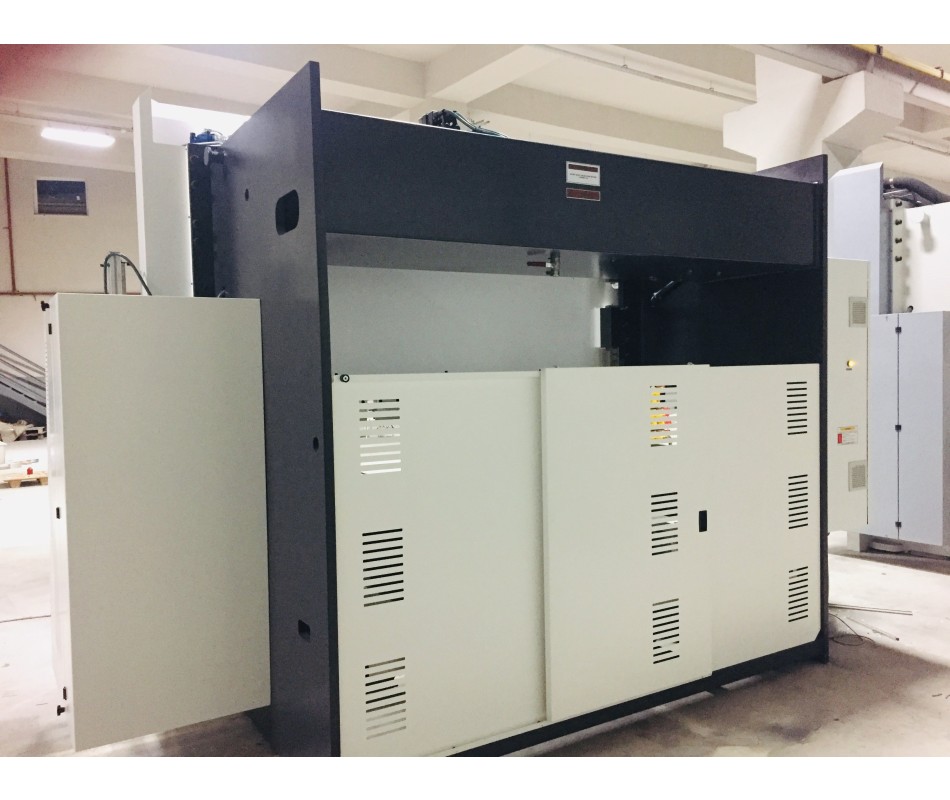

GIGA SERIES : 3 axis with Manual Crowning
GIGA SERIES : 3 axis with Manual Crowning
Standar Features
- Y1,Y2,X axis standard features
- The operation of the ram is hydraulic with double cylinder

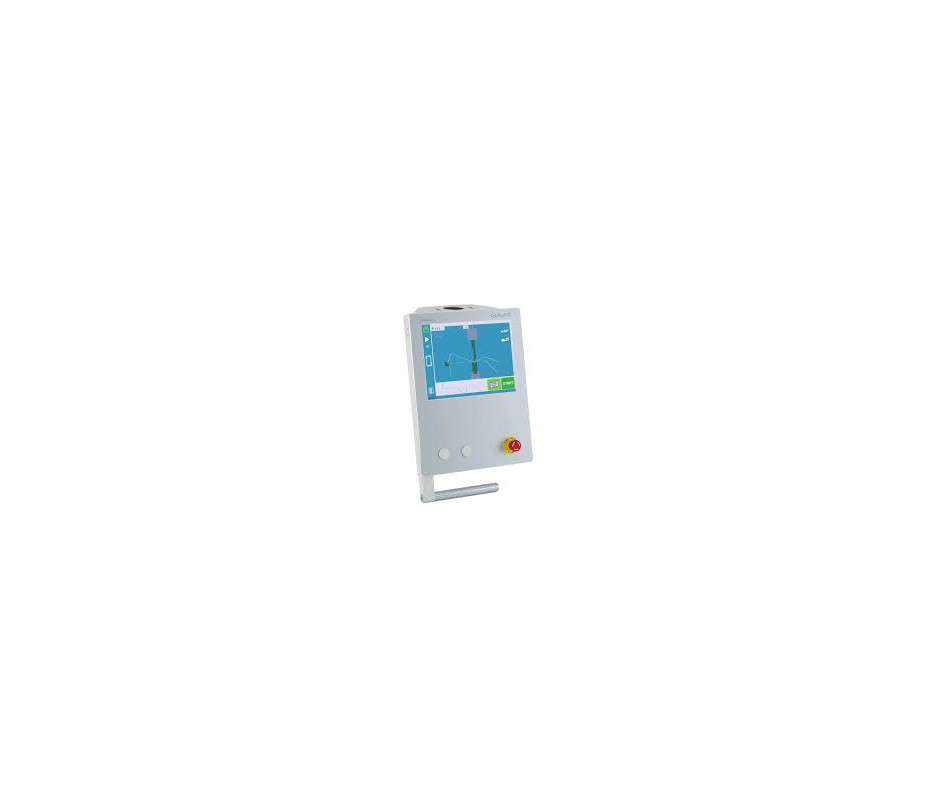

- Cybelec CybTouch 12 CNC Control Unit

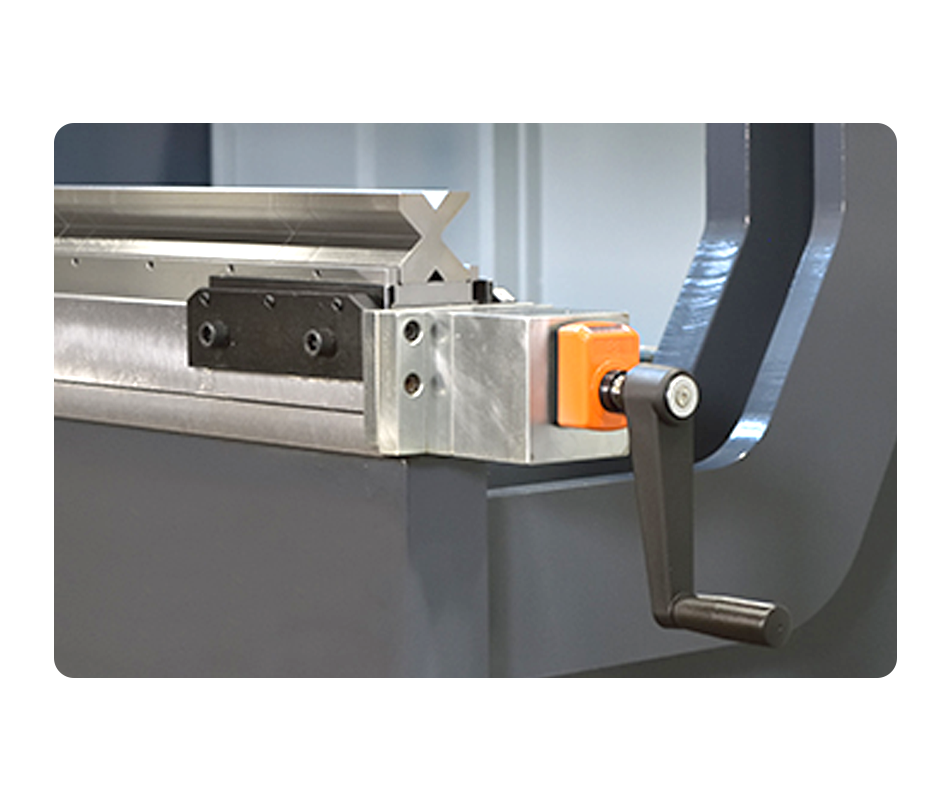

- Manual Crowning System
- Rexroth proportional flow valves
- Rexroth proportional pressure valves
- Rexroth Gear Pump to get the higher performance

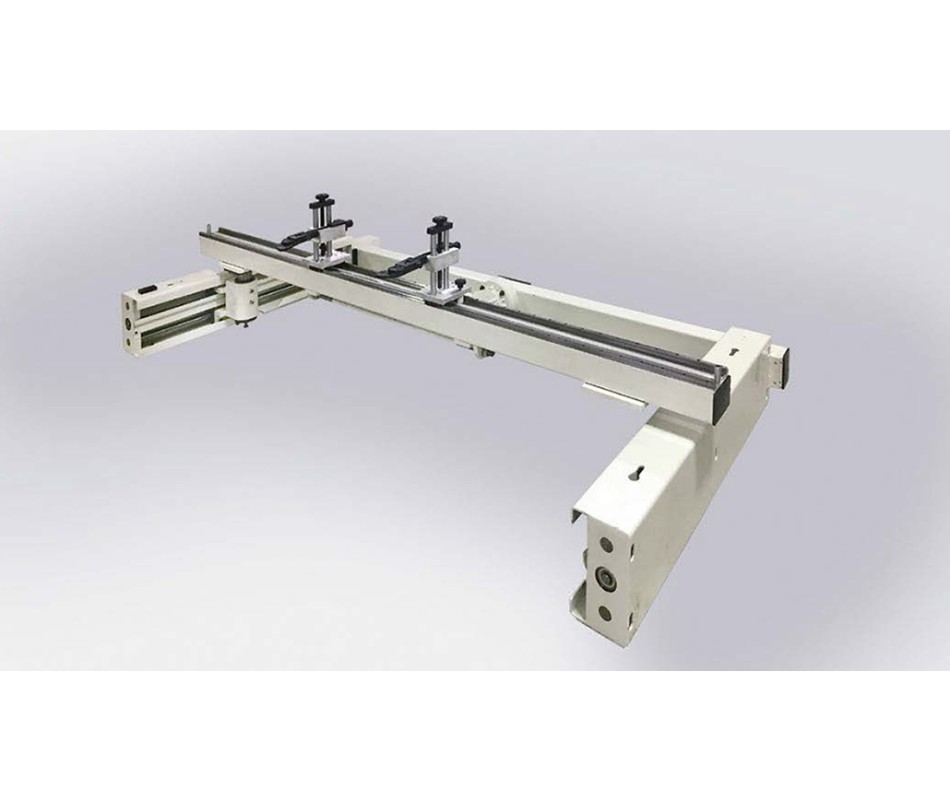

- AC motor Back Gauge and Ball Screw system
- Non CE norm FAKAS FPBS (top beam)
- Connectors and system tube sizing with DIN regulations
- Filters with high pressured against clogging
- Air removal filter in the reservoir
- Die Holder 60mm
- European Quick Release Top clamping system
- Sliding Front Arms With Full length linear guide and brushes
- Safety Cover
Optional Features:
- CNC Control Unit Cybelec CybTouch 15
- Delem 58T Control Unit
- Delem 66T Control Unit
- CE Norm DSP Top beam safety with PLC included
- Manual FIESSLER AKAS + FPSC (Safety PLC)
- R axis
- CNC Controlled Motorised crowning system
- Oil coolent
- Oil Heater
- Additional back gauge finger and front arms
- Control Panel On opposite site
|
GIGA SERIES 3 AXIS HYDRAULIC PRESS BRAKES |
|||||||||||||||||||
|
Type |
Bending Length |
Bending Force |
Stroke |
Between Columns |
Y axis Down Speed |
Y axis bending speed |
Y axis return speed |
X axis distance |
X axis speed |
Length |
Height |
Width |
Throat Depth |
Table Height |
Daylight |
Bottom table dimension |
Motor |
Oil Tank |
Weight |
|
|
mm |
Ton |
mm |
mm |
mm/sec |
mm/sec |
mm/sec |
mm |
mm/sn |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kw |
lt |
kg |
|
GIGA -1240 |
1300 |
40 |
180 |
1000 |
180 |
10 |
150 |
650 |
200 |
2125 |
2150 |
2000 |
300 |
770 |
400 |
100 |
5,5 |
100 |
2500 |
|
GIGA -1540 |
1500 |
40 |
180 |
1200 |
180 |
10 |
150 |
650 |
200 |
2350 |
2150 |
2000 |
300 |
770 |
400 |
100 |
5,5 |
100 |
2900 |
|
GIGA -1260 |
1300 |
60 |
180 |
1000 |
180 |
10 |
150 |
650 |
200 |
2130 |
2375 |
2000 |
400 |
850 |
400 |
100 |
5,5 |
100 |
3100 |
|
GIGA -1560 |
1500 |
60 |
270 |
1200 |
180 |
10 |
150 |
650 |
200 |
2360 |
2600 |
2000 |
400 |
850 |
550 |
100 |
5,5 |
100 |
3800 |
|
GIGA -2060 |
2100 |
60 |
270 |
1650 |
180 |
10 |
150 |
750 |
200 |
2830 |
2600 |
2100 |
450 |
850 |
550 |
100 |
5,5 |
100 |
4800 |
|
GIGA -25100 |
2600 |
100 |
270 |
2100 |
180 |
10 |
150 |
750 |
200 |
3300 |
2760 |
2150 |
450 |
850 |
550 |
100 |
7,5 |
200 |
6000 |
|
GIGA -31100 |
3100 |
100 |
270 |
2550 |
180 |
10 |
140 |
750 |
200 |
3760 |
2760 |
2150 |
450 |
850 |
550 |
100 |
7,5 |
200 |
7200 |
|
GIGA -31135 |
3100 |
135 |
270 |
2550 |
180 |
10 |
140 |
750 |
200 |
3760 |
2820 |
2150 |
450 |
850 |
550 |
120 |
11 |
200 |
8500 |
|
GIGA -31175 |
3100 |
175 |
270 |
2550 |
160 |
10 |
130 |
750 |
200 |
3775 |
2920 |
2250 |
450 |
920 |
550 |
120 |
15 |
200 |
9600 |
|
GIGA -31220 |
3100 |
220 |
270 |
2550 |
140 |
10 |
120 |
750 |
200 |
3775 |
2960 |
2270 |
450 |
920 |
550 |
120 |
18,5 |
250 |
10500 |
|
GIGA -31260 |
3100 |
260 |
270 |
2550 |
120 |
10 |
120 |
750 |
200 |
3850 |
2960 |
2270 |
450 |
920 |
550 |
120 |
22 |
250 |
11500 |
|
GIGA -31320 |
3100 |
320 |
370 |
2550 |
120 |
10 |
100 |
750 |
200 |
3810 |
3100 |
2550 |
450 |
920 |
650 |
150 |
30 |
300 |
14000 |
|
GIGA -31400 |
3100 |
400 |
370 |
2550 |
100 |
8 |
100 |
750 |
200 |
3990 |
3280 |
2700 |
550 |
1030 |
650 |
200 |
37 |
400 |
19500 |
|
GIGA -37175 |
3700 |
175 |
270 |
3100 |
160 |
10 |
130 |
750 |
200 |
4325 |
2920 |
2250 |
450 |
920 |
550 |
120 |
15 |
200 |
11200 |
|
GIGA -37220 |
3700 |
220 |
270 |
3100 |
140 |
10 |
120 |
750 |
200 |
4325 |
2960 |
2270 |
450 |
920 |
550 |
120 |
18,5 |
200 |
12300 |
|
GIGA -37320 |
3700 |
320 |
370 |
3100 |
140 |
10 |
100 |
750 |
200 |
4360 |
3150 |
2690 |
450 |
920 |
650 |
150 |
30 |
300 |
14800 |
|
GIGA -41175 |
4100 |
175 |
270 |
3550 |
160 |
10 |
130 |
750 |
200 |
4675 |
2920 |
2250 |
450 |
920 |
550 |
120 |
15 |
200 |
11600 |
|
GIGA -41220 |
4100 |
220 |
270 |
3550 |
140 |
10 |
120 |
750 |
200 |
4675 |
2960 |
2270 |
450 |
920 |
550 |
120 |
18,5 |
250 |
13200 |
|
GIGA -41260 |
4100 |
260 |
270 |
3550 |
140 |
10 |
120 |
750 |
200 |
4750 |
2960 |
2270 |
450 |
920 |
550 |
120 |
22 |
250 |
14500 |
|
GIGA -41320 |
4100 |
320 |
370 |
3550 |
120 |
10 |
100 |
750 |
200 |
4710 |
3100 |
2550 |
450 |
920 |
650 |
150 |
30 |
300 |
17000 |
|
GIGA -41400 |
4100 |
400 |
370 |
3550 |
100 |
8 |
80 |
750 |
200 |
4990 |
3280 |
2700 |
550 |
1030 |
650 |
200 |
37 |
400 |
22000 |
|
GIGA -45175 |
4500 |
175 |
270 |
4000 |
160 |
10 |
130 |
750 |
200 |
5840 |
1830 |
1830 |
450 |
920 |
550 |
120 |
15 |
200 |
13300 |
|
GIGA -45220 |
4500 |
220 |
270 |
4000 |
140 |
10 |
120 |
750 |
200 |
5860 |
1830 |
1830 |
450 |
920 |
550 |
120 |
18,5 |
250 |
15400 |
|
GIGA -45320 |
4500 |
320 |
370 |
4000 |
140 |
10 |
120 |
750 |
200 |
5900 |
2050 |
2050 |
450 |
920 |
650 |
150 |
30 |
300 |
19000 |
|
GIGA -61220 |
6100 |
220 |
270 |
5100 |
120 |
10 |
100 |
750 |
200 |
6675 |
2960 |
2250 |
450 |
1050 |
550 |
120 |
18,5 |
200 |
19800 |
|
GIGA -61320 |
6100 |
320 |
370 |
5100 |
100 |
10 |
100 |
750 |
200 |
6675 |
3100 |
2550 |
450 |
920 |
650 |
150 |
30 |
300 |
23550 |
|
GIGA -61400 |
6100 |
400 |
370 |
5100 |
100 |
8 |
80 |
750 |
200 |
6660 |
3280 |
2700 |
550 |
1030 |
650 |
200 |
37 |
400 |
30000 |
|
GIGA -61500 |
6100 |
500 |
370 |
5100 |
100 |
8 |
80 |
750 |
200 |
6680 |
3350 |
2850 |
550 |
1070 |
650 |
300 |
37 |
400 |
31500 |
|
GIGA -61600 |
6100 |
600 |
370 |
5100 |
80 |
7 |
80 |
750 |
200 |
6720 |
5100 |
3780 |
550 |
2230 |
650 |
300 |
45 |
500 |
51400 |
