Ironworkers
Ironworkers
STANDARD FEATURES
- Hydraulic system
- Single piston (Vi-KM 60)
- Double piston (Vi-KM 85)
- 5 stations standard. Punching,cutting bars,cutting angles,Shearing plate,notching
- Stroke adjustable
- Centralised lubrication system
- Led lights on working stations
|

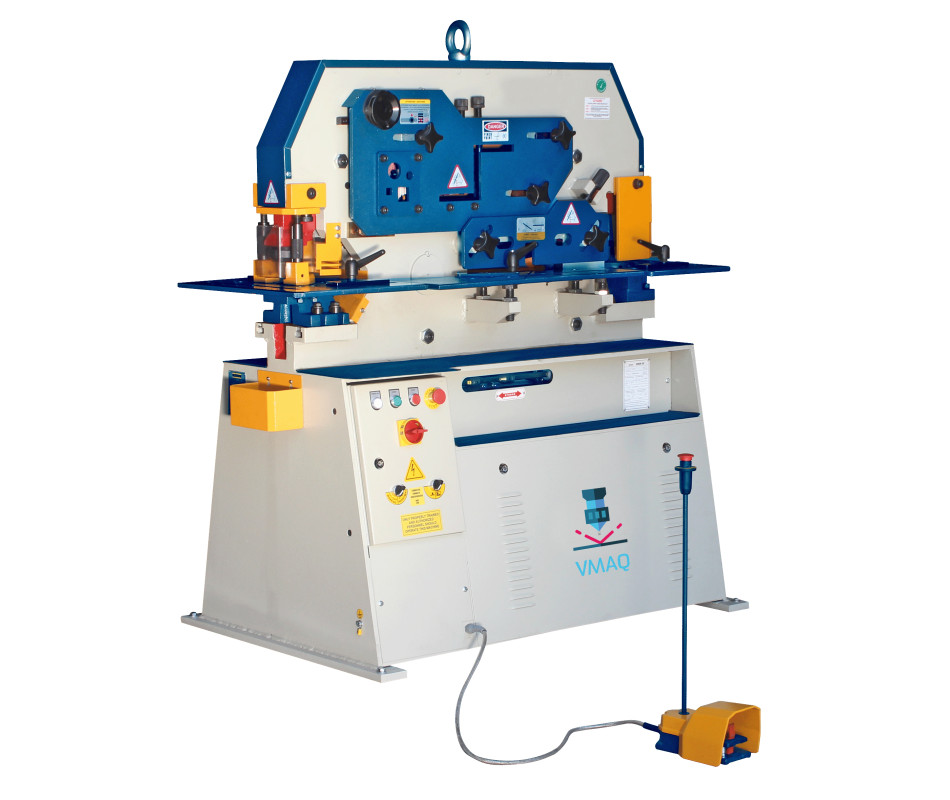

Vi-KM 60 |

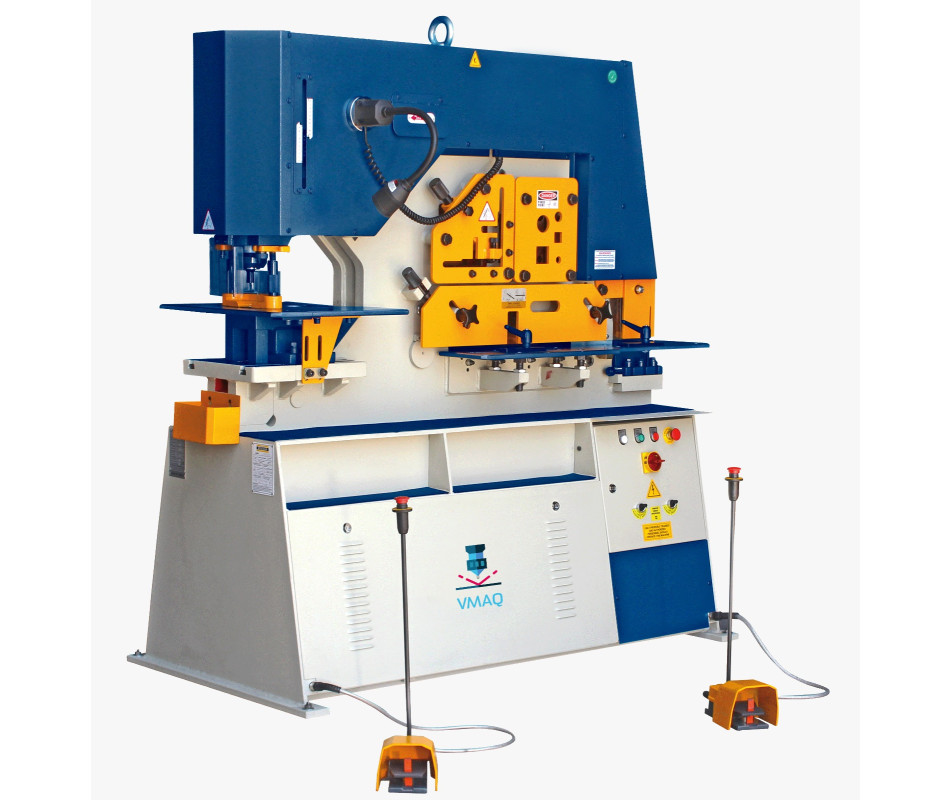

Vi-KM 85 |
||||
|
Single Piston |
Double Piston |
||||
|
STANDARD STATIONS |
|||||
|
Pressure |
60 ton |
Pressure |
85 ton |
||
|
Punching |
28x15 / 38x11 / 110x3 |
Punching |
33x20 / 57x12 / 110x4 |
||
|
Punching Stroke |
50mm |
Punching Stroke |
80mm |
||
|
Stroke Count (in 20mm) |
x25 |
Storke Count (in 20mm) |
x25 |
||
|
Steel Bar Shear |
|
Ø40mm / 35mm |
Steel Bar Shear |
|
Ø50mm / 50mm |
|
Angle Shear 90º |
|
120x120x12mm |
Angle Shear 90º |
|
150x150x15mm |
|
Angle Shear 45º |
|
80x8 |
Angle Shear 45º |
|
80x8 |
|
Sheet Metal Shear |
|
200x20 / 300x15 |
Sheet Metal Shear |
|
380x20 / 480x15 |
|
Notching |
10x42x100mm |
Notching |
13x53x100mm |
||
|
OPTIONAL STATIONS |
|||||
|
UPN-IPN cutting |
80x45 |
UPN-IPN cutting |
160x74 |
||
|
T profile cutting |
80x9 |
T profile cutting |
100x11 |
||
|
V notching |
100x100x8 |
V notching |
100x100x13 |
||
|
V bending |
100x12 |
V bending |
250x20 |
||
|
|
|
|
500x4 |
||
|
SPECIFICATIONS |
|||||
|
Motor |
4KW |
Motor |
7,5 KW |
||
|
Weight |
1440Kg |
Weight |
2320Kg |
||
|
Sizes |
1520x950x1780 mm |
Weight |
1920x950x2040 mm |
||
|

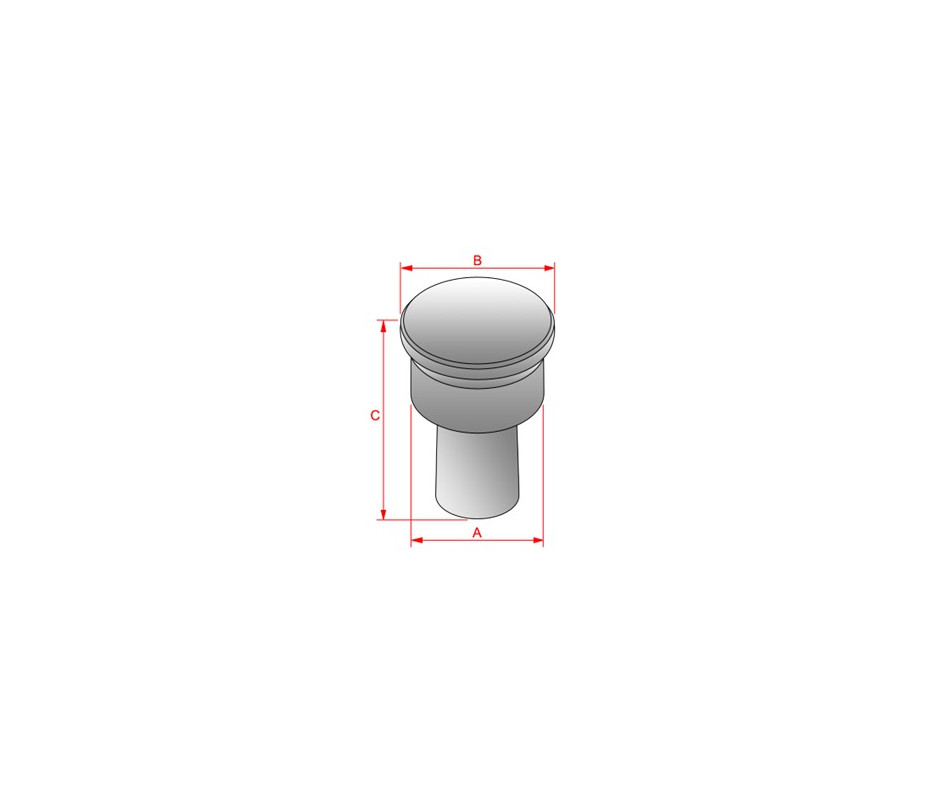

PUNCH CODE |
A |
B |
C |
D |
E |
MODELS |
ø |
|
9001 |
31 |
35 |
62 |
|
|
Vi-KM 60-85 |
6-30MM |
|
9004 |
38 |
45 |
62 |
|
|
Vi-KM 60-85 |
31-38MM |
|

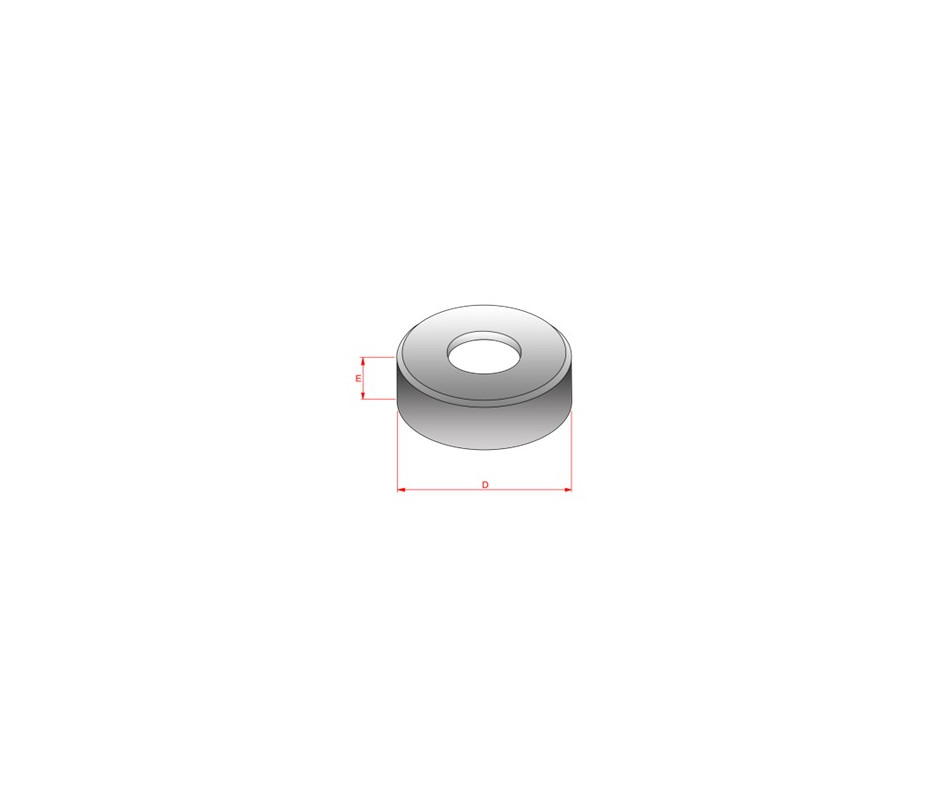

MATRIS CODE |
|
|
|
|
|
|
|
|
9023 |
|
|
|
60 |
32 |
Vi-KM 60-85 |
|
