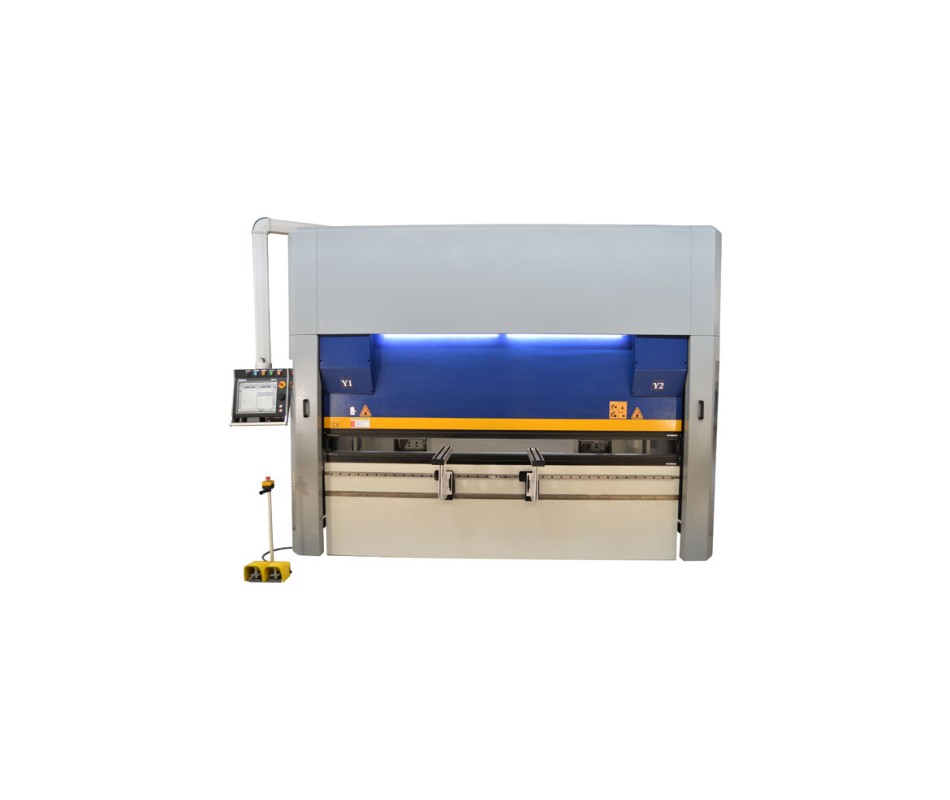

TERA SERIES : 4 axis with CNC Crowning
TERA SERIES : 4 axis with CNC Crowning
Standard Features:
- Y1,Y2,X and R axis standard features
- The operation of the ram is hydraulic with double cylinder

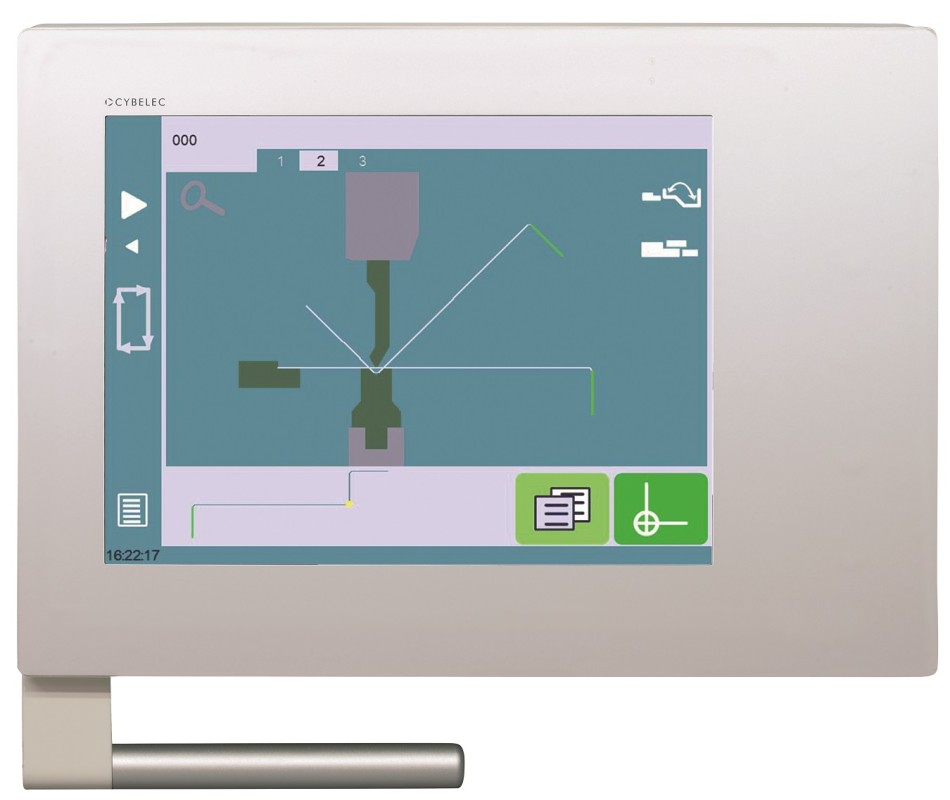

- Cybelec CybTouch 15 CNC Control Unit or Delem 58T

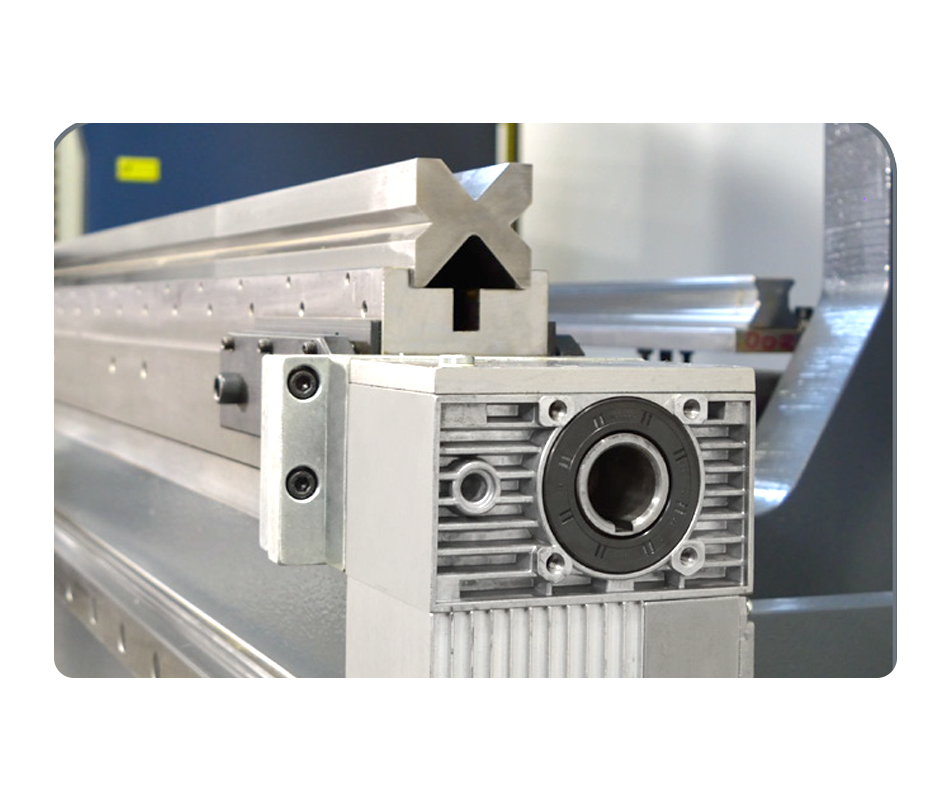

- Motorised Crowning System Controlled By CNC.
- Rexroth proportional flow valves
- Rexroth proportional pressure valves
- Rexroth Gear Pump to get the higher performance
- Servo motor Back Gauge and Ball Screw system (X-R) Mitsubishi brand
- Opkon/Givi Encoders
- Non CE norm FAKAS FPBS (top beam)
- Connectors and system tube sizing with DIN regulations
- Filters with high pressured against clogging
- Air removal filter in the reservoir
- Die Holder 60mm
- European Quick Release Top clamping system

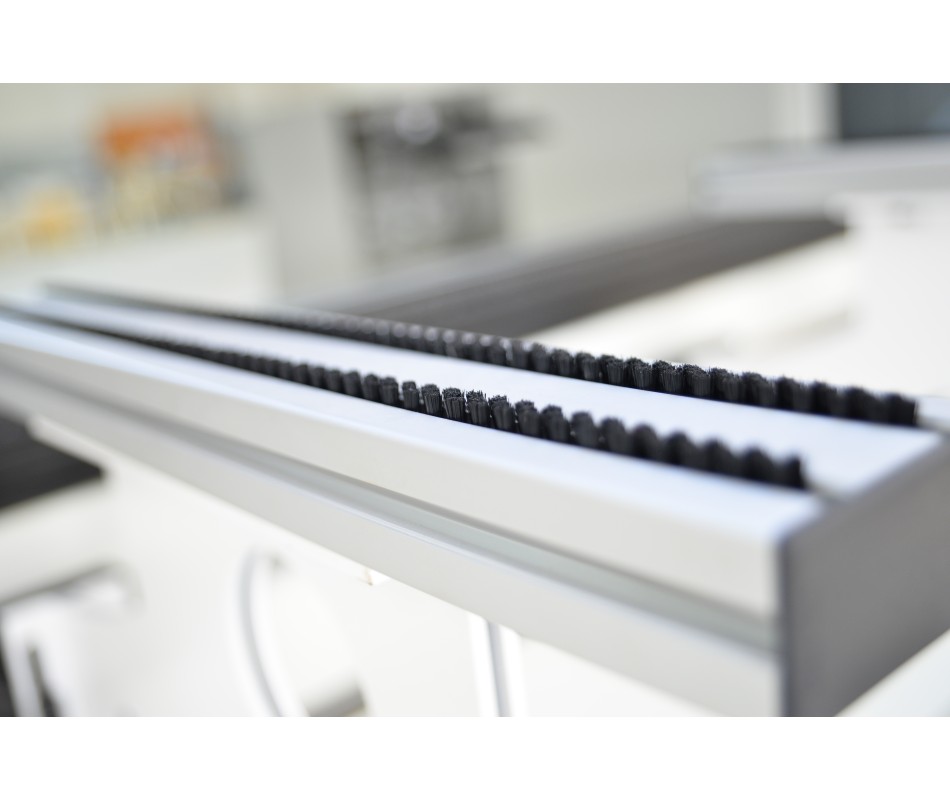

- Sliding Front Arms With Brushes
- Led lights on Front Cover
Optional Features:
- CNC Control Unit Cybelec EVA 19T or Delem 66T
- CE Manual Fiessler -FMSC- A-M and AKAS LC-II-M (Safety PLC)
- DSP Safety System + MCS (Safety PLC)
- Z1,Z2 axis
- X1,X2 axis
- R1,R2 axis
- Delta X Axis

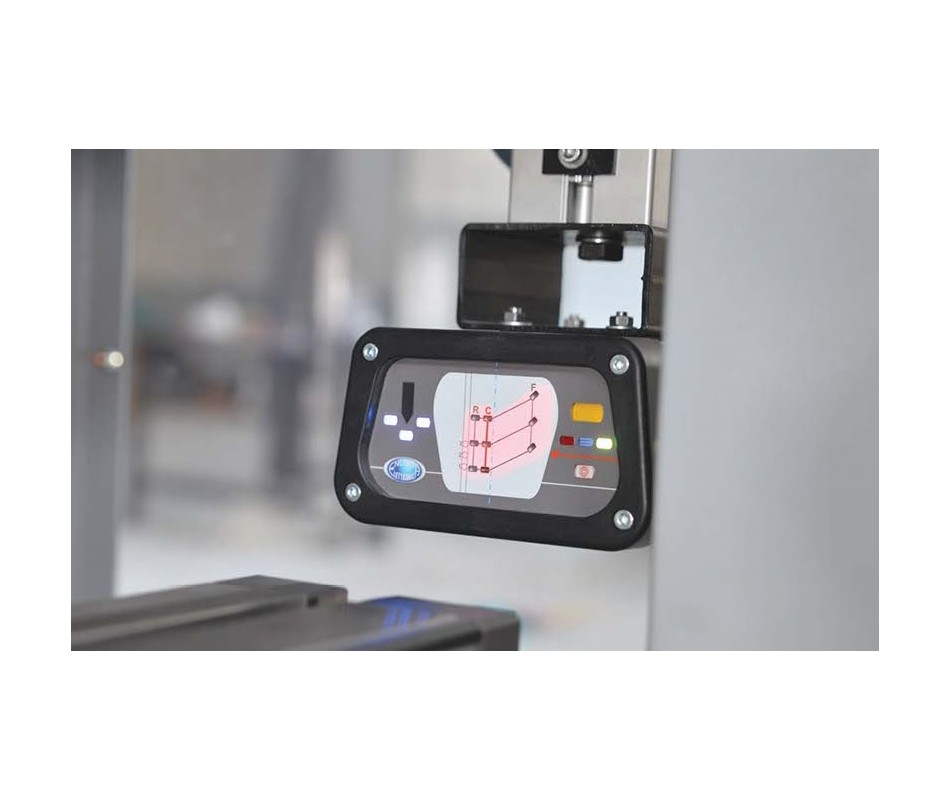

- X axis 1000mm light barrier back protection
- Wila Pro and PremiumTop and Bottom clamping System
- AP3-AP4 sheet followers
- Central Lubrication System
- Oil cooler

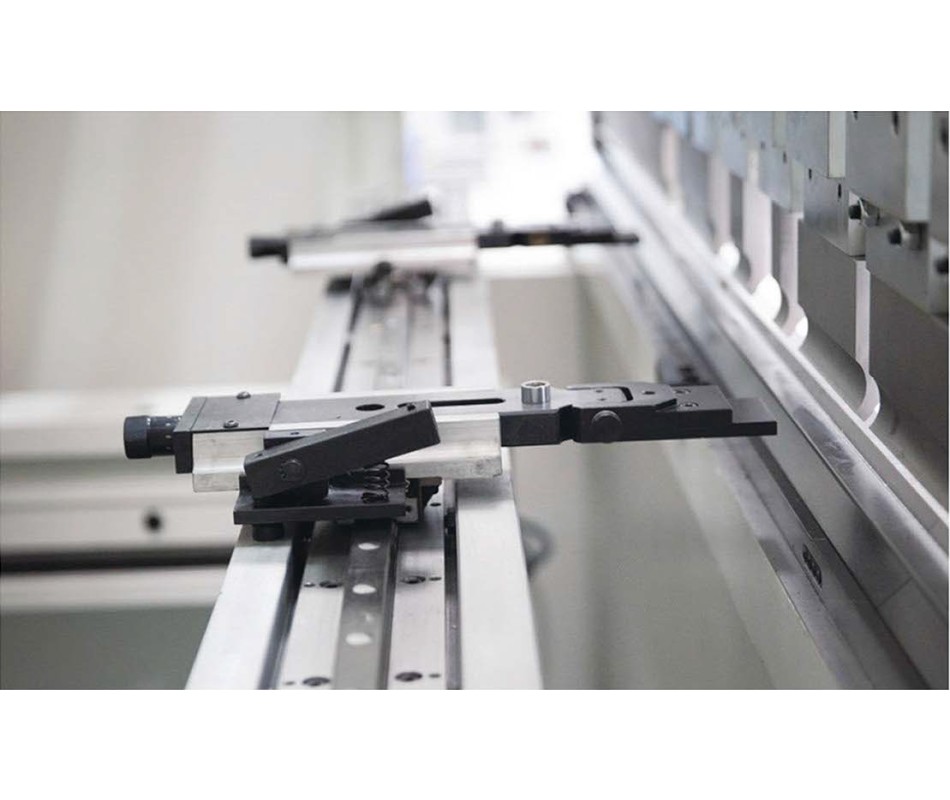

- Additional back gauge finger and sliding support arms
- Special packing for overseas shipment
|
Type |
Bending Length |
Bending Force |
Stroke |
Between Columns |
Y axis Down Speed |
Y axis bending speed |
Y axis return speed |
X axis distance |
R axis distance |
R axis speed |
X axis speed |
Length |
Width |
Height |
Total Width |
Throat Depth |
Table Height |
Daylight |
Bottom table dimension |
Motor |
Weight |
|
|
mm |
Ton |
mm |
mm |
Mm /sec |
Mm /sec |
Mm /sec |
mm |
mm |
Mm /sec |
Mm /sec |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kw |
kg |
|
TERA-1260 |
1300 |
60 |
180 |
1000 |
180 |
10 |
140 |
650 |
250 |
350 |
500 |
2130 |
1620 |
2375 |
2000 |
400 |
850 |
400 |
100 |
7,5 |
3250 |
|
TERA-1260 |
1300 |
60 |
270 |
1000 |
180 |
10 |
140 |
650 |
250 |
350 |
500 |
2130 |
1850 |
2600 |
2100 |
400 |
850 |
550 |
100 |
7,5 |
3600 |
|
TERA-2060 |
2100 |
60 |
270 |
1650 |
180 |
10 |
140 |
750 |
250 |
350 |
500 |
2830 |
1680 |
2600 |
2100 |
450 |
850 |
550 |
100 |
7,5 |
5300 |
|
TERA-25100 |
2600 |
100 |
270 |
2100 |
180 |
10 |
160 |
750 |
250 |
350 |
500 |
3300 |
1700 |
2760 |
2150 |
450 |
850 |
550 |
100 |
11 |
7000 |
|
TERA-31100 |
3100 |
100 |
270 |
2550 |
180 |
10 |
160 |
750 |
250 |
350 |
500 |
3760 |
1700 |
2820 |
2150 |
450 |
850 |
550 |
100 |
11 |
7800 |
|
TERA-31135 |
3100 |
135 |
270 |
2550 |
180 |
10 |
140 |
750 |
250 |
350 |
500 |
3760 |
1700 |
2850 |
2150 |
450 |
850 |
550 |
120 |
15 |
8600 |
|
TERA-31175 |
3100 |
175 |
270 |
2550 |
160 |
10 |
140 |
750 |
250 |
350 |
500 |
3775 |
1825 |
2920 |
2250 |
450 |
920 |
550 |
120 |
18,5 |
9800 |
|
TERA-31220 |
3100 |
220 |
270 |
2550 |
140 |
10 |
120 |
750 |
250 |
350 |
500 |
3775 |
1830 |
2960 |
2270 |
450 |
920 |
550 |
120 |
22 |
11000 |
|
TERA-31260 |
3100 |
260 |
270 |
2550 |
120 |
10 |
120 |
750 |
250 |
350 |
500 |
3780 |
1830 |
2960 |
2270 |
450 |
920 |
550 |
120 |
22 |
12000 |
|
TERA-31320 |
3100 |
320 |
370 |
2550 |
120 |
10 |
100 |
750 |
250 |
350 |
500 |
3810 |
2050 |
3100 |
2550 |
450 |
920 |
650 |
150 |
30 |
14500 |
|
TERA-31400 |
3100 |
400 |
370 |
2550 |
100 |
8 |
90 |
750 |
250 |
350 |
500 |
3990 |
2250 |
3280 |
2700 |
550 |
1030 |
650 |
200 |
37 |
20500 |
|
TERA-37175 |
3700 |
175 |
270 |
3100 |
160 |
10 |
140 |
750 |
250 |
350 |
500 |
4325 |
1825 |
2920 |
2250 |
450 |
920 |
550 |
120 |
18,5 |
12000 |
|
TERA-37220 |
3700 |
220 |
270 |
3100 |
140 |
10 |
120 |
750 |
250 |
350 |
500 |
4325 |
1830 |
2960 |
2270 |
450 |
920 |
550 |
120 |
22 |
13500 |
|
TERA-37320 |
3700 |
300 |
370 |
3100 |
140 |
10 |
100 |
750 |
250 |
350 |
500 |
4360 |
2110 |
3150 |
2690 |
450 |
920 |
650 |
150 |
30 |
15500 |
|
TERA-41175 |
4100 |
175 |
270 |
3550 |
160 |
10 |
140 |
750 |
250 |
350 |
500 |
4675 |
1825 |
2920 |
2250 |
450 |
920 |
550 |
120 |
18,5 |
12500 |
|
TERA-41220 |
4100 |
220 |
270 |
3550 |
140 |
10 |
120 |
750 |
250 |
350 |
500 |
4675 |
1830 |
2960 |
2270 |
450 |
920 |
550 |
120 |
22 |
14500 |
|
TERA-41260 |
4100 |
260 |
270 |
3550 |
140 |
10 |
120 |
750 |
250 |
350 |
500 |
4680 |
1830 |
2960 |
2270 |
450 |
920 |
550 |
120 |
22 |
15000 |
|
TERA-41320 |
4100 |
320 |
370 |
3550 |
120 |
10 |
100 |
750 |
250 |
350 |
500 |
4710 |
2050 |
3100 |
2550 |
450 |
920 |
650 |
150 |
30 |
18500 |
|
TERA-41400 |
4100 |
400 |
370 |
3550 |
100 |
8 |
80 |
750 |
250 |
350 |
500 |
4990 |
2250 |
3280 |
2700 |
550 |
1030 |
650 |
200 |
37 |
23000 |
|
TERA-45175 |
4500 |
175 |
270 |
4000 |
150 |
10 |
130 |
750 |
250 |
350 |
500 |
5840 |
1830 |
2950 |
2250 |
450 |
920 |
550 |
120 |
18,5 |
13600 |
|
TERA-45220 |
4500 |
220 |
270 |
4000 |
140 |
10 |
120 |
750 |
250 |
350 |
500 |
5860 |
1830 |
2960 |
2250 |
450 |
920 |
550 |
120 |
22 |
15800 |
|
TERA-45320 |
4500 |
320 |
370 |
4000 |
140 |
10 |
120 |
750 |
250 |
350 |
500 |
5900 |
2050 |
3100 |
2270 |
450 |
920 |
650 |
150 |
30 |
19650 |
|
TERA-61220 |
6100 |
220 |
270 |
5100 |
120 |
10 |
100 |
750 |
250 |
350 |
500 |
6675 |
1850 |
2960 |
2250 |
450 |
1050 |
550 |
120 |
22 |
21000 |
|
TERA-61320 |
6100 |
320 |
370 |
5100 |
120 |
10 |
100 |
750 |
250 |
350 |
500 |
6675 |
2050 |
3100 |
2550 |
450 |
920 |
650 |
150 |
30 |
25500 |
|
TERA-61400 |
6100 |
400 |
370 |
5100 |
100 |
8 |
80 |
750 |
250 |
350 |
500 |
6660 |
2250 |
3280 |
2700 |
550 |
1030 |
650 |
200 |
37 |
32000 |
|
TERA-61500 |
6100 |
500 |
370 |
5100 |
100 |
8 |
80 |
750 |
250 |
350 |
500 |
6680 |
2300 |
3350 |
2850 |
550 |
1070 |
650 |
300 |
37 |
35000 |
|
TERA-61600 |
6100 |
600 |
370 |
5100 |
80 |
7 |
80 |
750 |
250 |
350 |
500 |
6720 |
2650 |
5100 |
3780 |
550 |
2230 |
650 |
300 |
45 |
53000 |
