Punch Over Table Machines
Punch Over Table Machines
STANDARD FEATURES

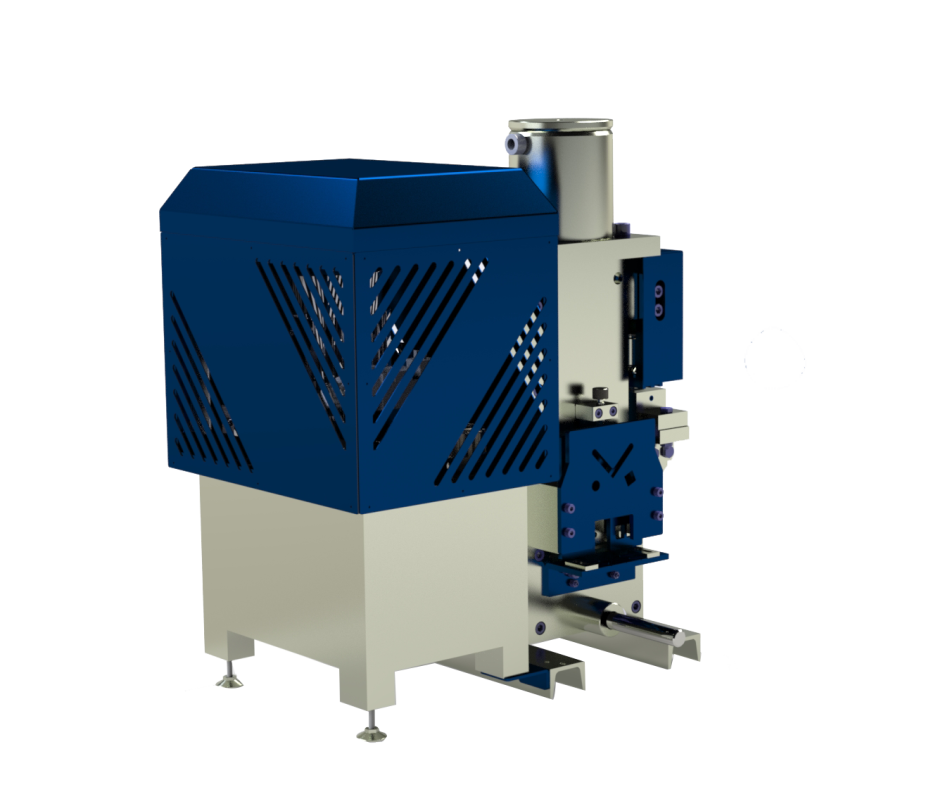

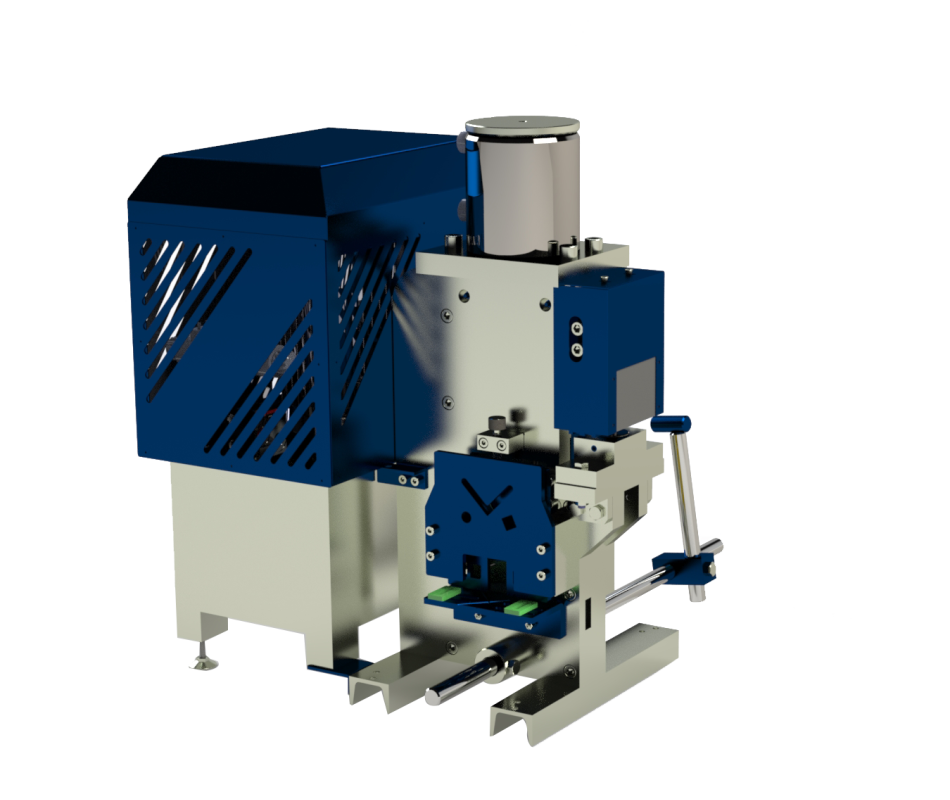

POT(Punch Over Table) models are Hydraulic Ironworkers being used compact and over Table and have light frame and 220V monophase electricity features. Especially for the customers who have limited budget, it is perfect solution to have it in their workshops.
Advantageous of POT models
- Monophase
- Optional on wheels to be carried all over the workshop
- Practical and Easy to Use
- Kingsland Type Punches and Dies available
- Adjustment Mode
- Easy Transport Anywhere
|
MODELS |
|
POT 22 |
POT 30 |
POT 50 |
|
TECHNICAL SPECIFICATION |
UNIT |
|
|
|
|
MOTOR POWER |
Kw |
4 |
4 |
5 |
|
CAPACITY |
TON |
22 |
30 |
50 |
|
WEIGHT |
kg |
150 |
175 |
350 |
|
MACHINE DIMENSIONES |
L*W*H |
635x530x790 |
700x530x800 |
785x530x820 |
|
STROKE |
mm |
30 |
30 |
30 |
|
STROKE COUNT IN 20MM (MIN.) |
|
x30 |
x28 |
x25 |
|
Dia. THICKNESS |
mm |
Ø 20x8 |
Ø 22x10 |
Ø 30x10 |
|
FLAT SHEET METAL |
mm |
150x10 |
180x10 |
200x12 |
|
L ANGLE CUTTING |
mm |
50x50x5 |
60x60x6 |
80x80x8 |
|
T PROFILE (OPTIONAL) |
mm |
50x50x5 |
76 x 38 |
80x45 |
|
UPN PROFILE (OPTIONAL) |
mm |
65x42 |
65x42 |
100x50 |
|
ROUND BAR |
mm |
Ø14 |
Ø 25 |
Ø 30 |
|
SQUARE BAR |
mm |
□ 14 |
□ 20 |
□ 25 |
